SEND-AR-F Fiber Optic Dual-color Infrared Thermometer |
Main Performance：
●Temperature Measurement Range: 600~3000℃ (Segmented)
●4~20mA linear output
●Automatically compensates for the effects of dust, smoke, and lens obstruction
●Coaxial optical lens and laser aiming for easy accurate positioning of the measured target
●Monochrome and dual-color modes are switchable, making it particularly suitable for applications in different scenarios.
●The rear panel is equipped with an LCD display and quick-operation buttons.
●Robust stainless steel housing, suitable for harsh industrial on-site environments
|
Main Application Fields:
Induction heating, metal heat treatment, wire rods, ceramics, graphite, glass, microwaves, kilns, metallurgy, semiconductors
|
Standard Packaging：
Standard configuration: Processor (including 3-meter optical fiber), mounting nuts, operation manual
Optional items: Mounting bracket, purger, high-temperature protective sleeve, control box |
| Measurement Parameters |
| Measurement Range |
|
| SEND-1M-14AR-F |
600℃～1400℃ |
| SEND-1M-18AR-F |
700℃～1800℃ |
| SEND-1M-30AR-F |
1000℃～3000℃ |
| Wavelength Range)： |
0.85 - 1.1 μm (Dual - color |
| Measurement Accuracy： |
±0.75% |
| Repeatability： |
±0.5% |
| Response Time： |
10ms |
| Emissivity Ratio (Dual - color mode)： |
0.800 - 1.200 |
| Emissivity (Single - color mode)： |
0.100 - 1.100 |
| Optical Resolution： |
|
| 14AR |
80:1 |
| 18AR |
130:1 |
| 30AR |
150:1 |
| Electrical Parameters |
| Power Supply： |
24VDC ±20% |
| Analog Output： |
4 - 20mA |
| Output Impedance： |
|
| General Parameters |
| Optical Fiber Length： |
3m (standard),
other lengths customizable |
| Probe Temperature： |
-10~200℃ |
| Storage Temperature： |
-20~70℃ |
| Relative Humidity： |
10~95%, non-condensing |
| Environmental Rating： |
IP65 (NEMA-4) |

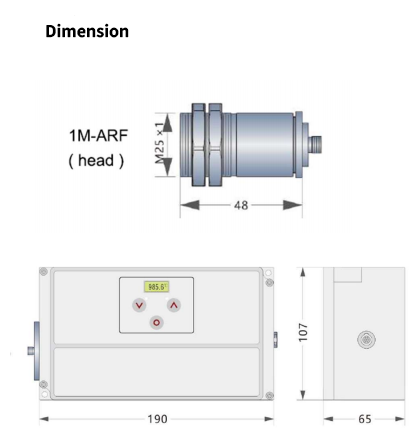

| Probe Dimension： |
Φ25mm, L=48mm |
|
 |
 |
|
